Rent Manhole Boxes

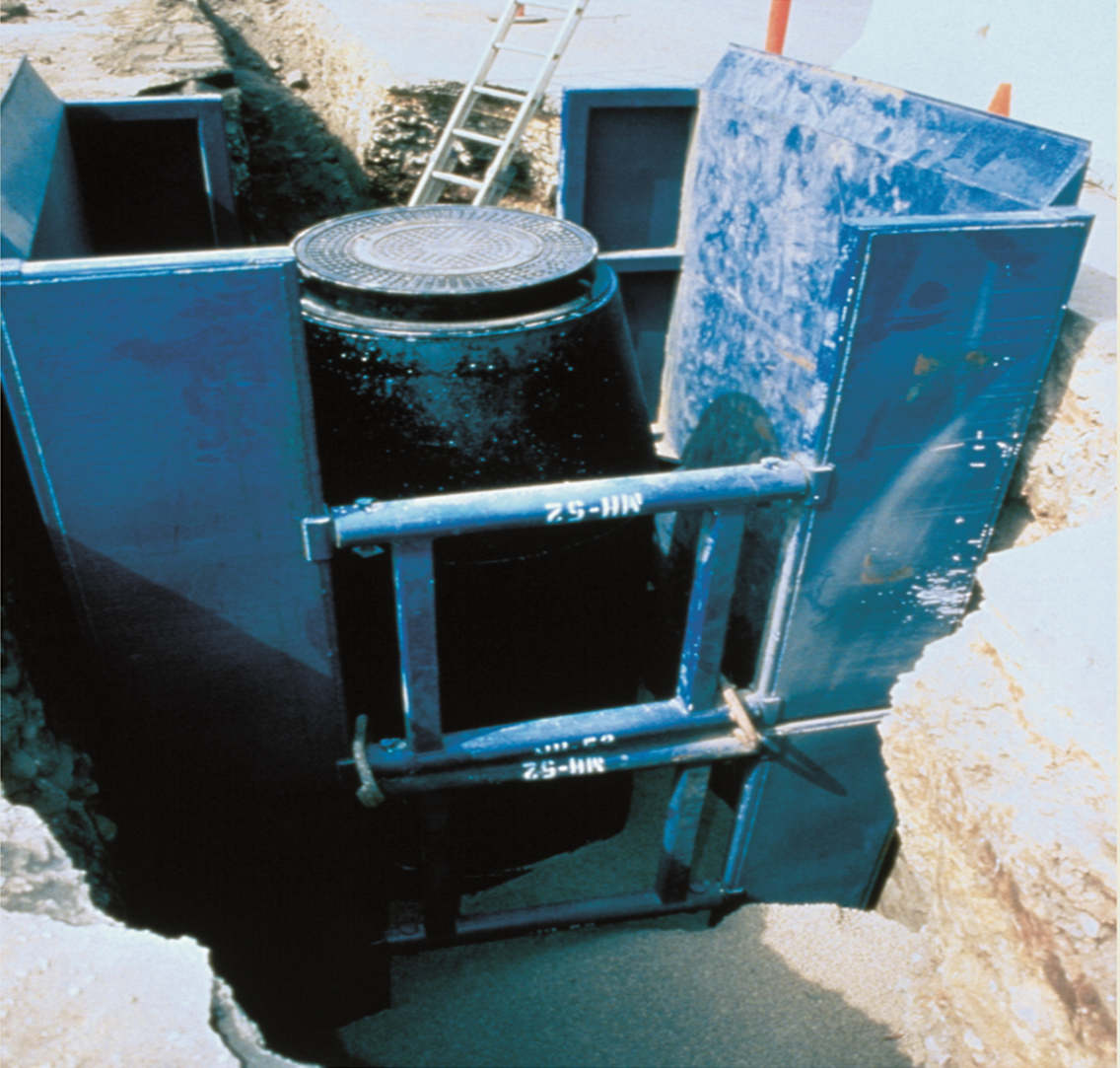

blue manhole shield in use at worksite

Call 888.344.7368 For Price

Manhole Trench Shields are capable of being used in conjunction with trench shields to allow for little to no interruption on in-progress pipe jobs. The square configuration provides the needed inside clear span while reducing the amount of excavation and restoration work required.

Double Wall

ModelSizePipe ClearanceWeight (LBS)Shield Cap (PSF)
MH10DW8′ X 10′ X 10′    45″    5,0841,641
MH410DW4′ X 10′ X 10′    N/A    3,3321,813
MH8DW8′ X 8′ X 8′    45″    3,717655
MH48DW4′ X 8′ X 8′    N/A    2,8662,160

Double Wall with Cut-Outs

ModelSizePipe ClearanceWeight (LBS)Shield Cap (PSF)
MH8DW w/ CO8′ X 8′ X 8′    45″    4,3871,924
MH10DW w/ CO8′ X 10′ X 10′    45″    5,0841,252
MH12DW w/ CO8′ X 12′ X 12′    45″    5,787872
